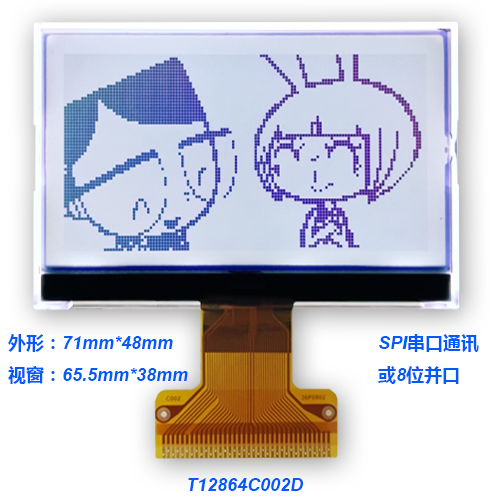

長期供貨質量穩定COG12864液晶屏

品牌:
乾思迪LCD液晶屏
12864:
12864
價格:
6.00
起訂:
1 片
供貨總量:
1000000 片
發貨期限:
自買家付款之日起 3 天內發貨
地址:
深圳市 坪山區坪山街道蘭金四路19號華瀚科技工業園二號廠房二樓
有效期限:
長期有效
最后更新:
2024-08-20
商品詳情

圖形點陣產品列表（點擊產品型號可下載規格書）









點陣數型號外形尺寸視窗尺寸產品描述產品圖片驅動IC說明


122*32T12232M01A84.0*44*13.5(9.5)60.0*18.0產品描述JPGSED1520/Eqv5.0V(18PIN)


T12232M02E84.0*44*13.5(9.5)60.0*18.0產品描述JPGSED1520/Eqv5.0V(分割屏)



T12232M00376.5*29.1*6(13.5)60.5*21.0產品描述JPGSED1520/Eqv5.0V(分割屏)



T12232M04B89.0*47.0*9.5(12.5)74.0*22.0產品描述JPGSED1520/Eqv5.0V



T12232M00584.0*36.0*9.574.0*22.0產品描述JPGSED1520/Eqv5.0V /FSTN



T12232M02576.6*28.0*13.060.0*18.0產品描述JPGSED1520/Eqv5.0V (18PIN)



T12232M02666.5*28.0*13.055.0*18.5產品描述JPGSED1520/Eqv5.0V(分割屏)



T12232M02873.84*28*13.055.0*18.5產品描述JPGSED1520/Eqv5.0V(分割屏)



128*32T12832M00580.0*36.0*962.1*17.1產品描述JPGST7565R5.0V/3.3V/并/串


T12832M06A110.0*65.0*14.076.0*25.0產品描述JPGS6B0108/Eqv5.0V



128*64T12864M01075.0*52.7*10.059.0*32.0產品描述JPGS6B0108/Eqv5.0V/3.3V


T12864M03C93.0*70.0*9.5(13.5)72.0*39.0產品描述JPGS6B0108/Eqv5.0V/3.3V



T12864M00954.0*50.0*7.543.5*29.0產品描述JPGS6B0108/Eqv5.0V/3.3V/圖標



T12864M04D113.0*65.0*9.5(13.5)72.0*39.0產品描述JPGS6B0108/Eqv5.0V/3.3V



T12864M01A78.0*70.0*12.562.0*44.0產品描述JPGS6B0108/Eqv5.0V/3.3V



T12864M00678.0*70.0*12.562.0*44.0產品描述JPGT6963C5.0V



T12864M00793.0*70.0*13.565.5*38.0產品描述JPGST7565R5.0V/3.3V



T12864M01569.1*50.065.5*38.0產品描述JPGST7565R5.0V/3.3V 串



T12864M093C93.0*70.0*10.565.5*38.0產品描述JPGST7565R5.0V/3.3V 并/串



T12864M093B93.0*70.0*13.571.7*38.8產品描述JPGST7565R5.0V/3.3V 串



T12864M139S57.2*42.554.2*32.5產品描述JPGST7565R5.0V/3.3V 串



T12864M935593.0*55.0*10.565.5*38.0產品描述JPGST7565R5.0V/3.3V 并/串



T12864M075A75.0*52.7*11.054.0*31.0產品描述JPGST7565R5.0V/3.3V 并/串



80.0*42.011.054.0*31.0產品描述JPGST7565R5.0V/3.3V 串




T12864M5450A54.0*50.0*7.044.0*29.0產品描述JPGST7565R5.0V/3.3V 并/串



128*128T128128M00185.0*100.0*14.0(9.0)62.0*62.0產品描述JPGT6963C5.0V


T128128M6570A70*65.542.5*44.5產品描述JPGUC16173.3V/串口



T128128M00285.0*100.0*14(9.0)62.0*62.0產品描述JPGS6B0108/Eqv5.0V



160*32T16032M001120.0*40.0*11.599.0*24.0產品描述JPG
5.0V


160*80T16080M001100.0*54.0*14.0(9.5)72.0*39.0產品描述JPGT69635.0V


192*32T19232M001115.8*50.0*14.097.0*26.0產品描述JPGS6B0108/Eqv5.0V


192*64T19264M02B120.0*62.0*13.0104.0*39.0產品描述JPGS6B0108/Eqv5.0V/3.3V


T19264M01A130.0*65.0*13.0104.0*39.0產品描述JPGS6B0108/Eqv5.0V/3.3V



T19264M03C100.0*60.0*11.584.0*31.0產品描述JPGS6B0108/Eqv5.0V/3.3V



T19264M006140.0*53.0*12.5(9.0)104.0*39.0產品描述JPGS6B0108/Eqv5.0V/3.3V



240*64T24064M020180.0*65.0132.0*39.0產品描述JPGT6963C20PIN


T24064M022180.0*65.0132.0*39.0產品描述JPGT6963C22PIN



240*128T240128M01A144.0*104.0*13.0(11.0)104.0*64.0產品描述JPGT6963C5.0V


T240128M005144.0*84.0*12.5104.0*64.0產品描述JPGT6963C5.0V



320*240T320240M001160.0*109.0*12.5122.0*92.0產品描述JPGSED13355.0V


最早的液晶模塊應用技術COB結構，市面上最通用最方便最快捷的產品選用方案！
